Example: Function calling

1
VoxEngine.addEventListener(AppEvents.Started, (appEvent) => {
2
  sessionControlUrl = appEvent.accessSecureURL;
3
});
4
5
voiceAIClient.start({
6
  metadata: {
7
    from: call.callerid(),
8
    to: call.number(),
9
    vox_session_control_url: sessionControlUrl
10
  }
11
});

1
VoxEngine.addEventListener(AppEvents.HttpRequest, (appEvent) => {
2
  const cmd = JSON.parse(appEvent.content);
3
  if (cmd.action === "end_call") {
4
    callerLeg.hangup();
5
    voiceAIClient?.close();
6
    VoxEngine.terminate();
7
  } else if (cmd.action === "call_transfer") {
8
    callTransfer(cmd);
9
  }
10
  return JSON.stringify({ ok: true });
11
});

1
import os
2
import asyncio
3
from typing import Annotated, Optional
4
5
import httpx
6
7
from line.llm_agent import LlmAgent
8
from line.llm_agent.config import LlmConfig
9
from line.events import AgentEndCall, AgentSendText
10
from line.llm_agent.tools.decorators import passthrough_tool
11
from line.llm_agent.tools.utils import ToolEnv
12
from line.voice_agent_app import AgentEnv, CallRequest, VoiceAgentApp
13
14
15
DEFAULT_SYSTEM_PROMPT = """\
16
You are a helpful voice agent running on Cartesia Line, connected to a phone call via Voximplant.
17
18
This demo has a very simple call transfer:
19
1) If the caller asks for Voxy or a human, call call_transfer(summary=...).
20
2) The call_transfer tool will speak the transfer confirmation to the caller.
21
3) Do not continue the conversation after calling call_transfer.
22
23
Ending the call:
24
- If the caller asks to hang up or says goodbye, say a short goodbye and then call end_call().
25
26
Be concise, polite, and ask one question at a time.
27
"""
28
29
DEFAULT_INTRODUCTION = "Hi, this is Voximplant Voice AI powered by Cartesia Line. How can I help?"
30
31
32
async def _post_vox_control(
33
    url: str,
34
    payload: dict,
35
    *,
36
    timeout_s: float = 3.0,
37
) -> dict:
38
    """Send a POST request to the given URL with the provided payload."""
39
    try:
40
        async with httpx.AsyncClient(timeout=timeout_s) as client:
41
            response = await client.post(url, json=payload)
42
            try:
43
                return response.json()
44
            except Exception:
45
                return {"status_code": response.status_code, "text": response.text}
46
    except Exception:
47
        return {"error": "request_failed"}
48
49
50
async def get_agent(env: AgentEnv, request: CallRequest):
51
    # Extract the Voximplant control URL from the request metadata, if present and valid.
52
    vox_control_url: Optional[str] = None
53
    if request.metadata and isinstance(request.metadata, dict):
54
        raw = request.metadata.get("vox_session_control_url")
55
        if isinstance(raw, str) and raw.startswith("https://"):
56
            vox_control_url = raw
57
58
    if not vox_control_url:
59
        return {
60
            "error": "missing_vox_control_url",
61
            "message": "The call request is missing a valid 'vox_session_control_url' in its metadata.",
62
        }
63
64
    @passthrough_tool
65
    async def call_transfer(
66
        ctx: ToolEnv,
67
        summary: Annotated[
68
            str,
69
            "Optional short transfer summary (for logs / analytics). Voximplant will receive it.",
70
        ] = "",
71
    ):
72
        """Request Voximplant to transfer the call to a human (Voximplant performs the telephony actions).
73
           Speak first so the caller reliably hears the transfer confirmation before Voximplant
74
           detaches the agent audio and bridges to PSTN.
75
        """
76
        yield AgentSendText(text="Sure. One moment, I'm transferring you to a human now.")
77
78
        async def _do_transfer():
79
            # Give TTS time to play before Voximplant starts tearing down the agent bridge.
80
            # use line.events.AgentTurnEnded to be more precise
81
            await asyncio.sleep(5.0)
82
            await _post_vox_control(
83
                vox_control_url,
84
                {"action": "call_transfer", "summary": summary},
85
                timeout_s=10.0,
86
            )
87
88
        asyncio.create_task(_do_transfer())
89
90
    @passthrough_tool
91
    async def end_call(ctx: ToolEnv):
92
        """End the call."""
93
        yield AgentEndCall()
94
        # Give TTS time to play before Voximplant starts tearing down the agent bridge.
95
        # use line.events.AgentTurnEnded to be more precise
96
        await asyncio.sleep(3.0)
97
        await _post_vox_control(vox_control_url, {"action": "end_call"})
98
99
    agent = LlmAgent(
100
        model="gpt-5-nano",
101
        api_key=os.getenv("OPENAI_API_KEY", ""),
102
        tools=[end_call, call_transfer],
103
        config=LlmConfig(
104
            system_prompt=DEFAULT_SYSTEM_PROMPT,  # use request.agent.system_prompt for the GUI version
105
            introduction=DEFAULT_INTRODUCTION,    # use request.agent.introduction for the GUI version
106
        ),
107
    )
108
109
    return agent
110
111
112
voice_agent_app = VoiceAgentApp(get_agent=get_agent)
113
app = voice_agent_app.fastapi_app
114
115
116
if __name__ == "__main__":
117
    # Local dev only. Cartesia runs this as a web service in the cloud.
118
    voice_agent_app.run()

1

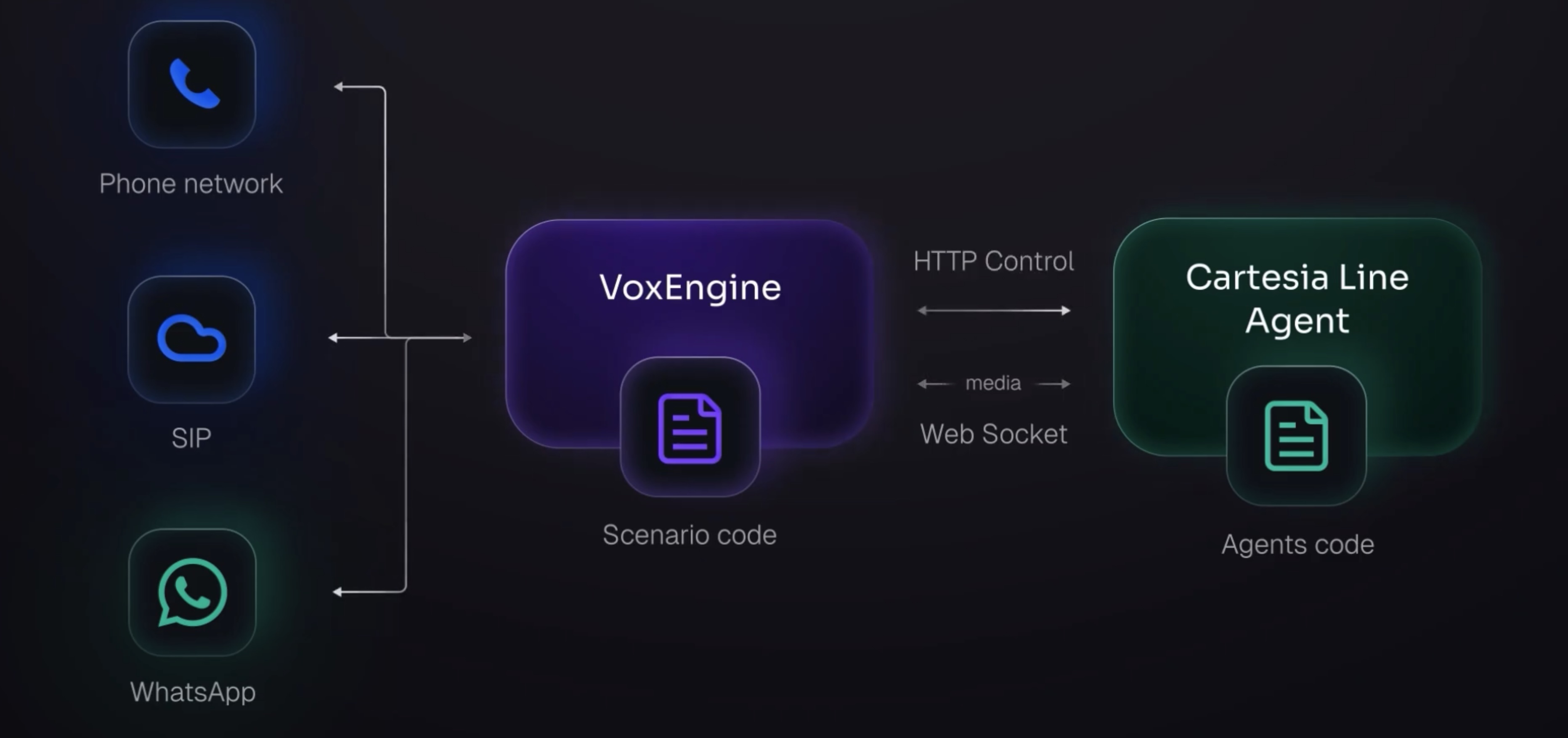

// Voximplant VoxEngine scenario:
2
// - Streams caller audio <-> Cartesia Line agent (Agents connector)
3
// - Supports:
4
//   - end_call: hang up the caller leg
5
//   - call_transfer: place an outbound PSTN consult call and then bridge caller -> consult leg
6
//
7
// Configure these keys in Voximplant Application Storage:
8
// - CARTESIA_API_KEY
9
// - CARTESIA_AGENT_ID
10
// - PSTN_CALLER_ID (required for callPSTN; must be a real E.164 number in your Voximplant account)
11
12
require(Modules.Cartesia);
13
require(Modules.ApplicationStorage);
14
require(Modules.ASR);
15
16
const CALL_TRANSFER_NUMBER = "+18339906144";
17
18
// Per-session control URL. Any HTTPS request to this URL triggers AppEvents.HttpRequest in this session.
19
// We'll pass it into Cartesia call metadata so the agent runtime can request telephony actions via HTTP.
20
let sessionControlUrl = null;
21
22
23
// Current call session state (single-call demo scenario).
24
let callerLeg = null;
25
let voiceAIClient = null;
26
let consultLeg = null;
27
let transferInProgress = false;
28
let transferred = false;
29
30
31
VoxEngine.addEventListener(AppEvents.Started, (appEvent) => {
32
    sessionControlUrl = appEvent.accessSecureURL;
33
    Logger.write(`===SESSION_CONTROL_URL_READY===>${JSON.stringify({accessSecureURL: sessionControlUrl}) || ""}`);
34
});
35
36
37
VoxEngine.addEventListener(AppEvents.HttpRequest, async (appEvent) => {
38
    Logger.write(`===HTTP_CONTROL_REQUEST===>${JSON.stringify({method: appEvent.method, path: appEvent.path}) || ""}`);
39
40
    // Check for and handle control commands
41
    const cmd = JSON.parse(appEvent?.content);
42
    if (cmd.action === "end_call") {
43
        Logger.write(`===CONTROL_END_CALL===>${JSON.stringify(cmd) || ""}`);
44
        callerLeg.hangup();
45
        voiceAIClient?.close();
46
        VoxEngine.terminate();
47
    } else if (cmd.action === "call_transfer") {
48
        Logger.write(`===CONTROL_CALL_TRANSFER===>${JSON.stringify(cmd) || ""}`);
49
        await callTransfer(cmd);
50
    } else {
51
        Logger.write(`===CONTROL_COMMAND_UNKNOWN===>${JSON.stringify(cmd) || ""}`);
52
    }
53
    return JSON.stringify({ok: true});
54
});
55
56
57
async function callTransfer(cmd) {
58
    if (transferInProgress || transferred) return;
59
    if (!callerLeg) return;
60
61
    transferInProgress = true;
62
    Logger.write(`===CALL_TRANSFER_REQUESTED===>${JSON.stringify(cmd || {}) || ""}`);
63
64
    // Detach the agent now for a blind transfer. Delay or conference for a warm transfer
65
    if (voiceAIClient) {
66
        VoxEngine.stopMediaBetween(callerLeg, voiceAIClient);
67
        voiceAIClient.close();
68
        voiceAIClient = null;
69
    }
70
71
    // Transfer the call to a new number
72
    const currentPstnCallerId = (await ApplicationStorage.get("PSTN_CALLER_ID")).value;
73
    consultLeg = VoxEngine.callPSTN(CALL_TRANSFER_NUMBER, currentPstnCallerId, {followDiversion: true});
74
75
    consultLeg.addEventListener(CallEvents.Failed, () => {
76
        transferInProgress = false;
77
        Logger.write(`===CONSULT_CALL_FAILED===>${JSON.stringify({}) || ""}`);
78
        callerLeg.hangup();
79
    });
80
81
    consultLeg.addEventListener(CallEvents.Disconnected, (event) => {
82
        Logger.write(`===CONSULT_CALL_DISCONNECTED===>${JSON.stringify(event) || ""}`);
83
    });
84
85
    consultLeg.addEventListener(CallEvents.Connected, () => {
86
        Logger.write(`===CONSULT_CALL_CONNECTED===>${JSON.stringify({}) || ""}`);
87
        transferInProgress = false;
88
        transferred = true;
89
        VoxEngine.sendMediaBetween(callerLeg, consultLeg);
90
    });
91
}
92
93
function onWebSocketClose(event) {
94
    Logger.write(`===ON_WEB_SOCKET_CLOSE===>${JSON.stringify(event) || ""}`);
95
    // Ignore expected close during transfer
96
    if (transferInProgress || transferred || event.code === 1000) return;
97
    // otherwise end the call
98
    callerLeg.hangup();
99
    VoxEngine.terminate();
100
}
101
102
VoxEngine.addEventListener(AppEvents.CallAlerting, async ({call}) => {
103
    callerLeg = call;
104
105
    // Termination functions - add cleanup and logging as needed
106
    call.addEventListener(CallEvents.Disconnected, () => VoxEngine.terminate());
107
    call.addEventListener(CallEvents.Failed, () => VoxEngine.terminate());
108
109
    try {
110
        call.answer();
111
        call.record({hd_audio: true, stereo: true});   // Optional: record the call
112
113
        voiceAIClient = await Cartesia.createAgentsClient({
114
            apiKey: (await ApplicationStorage.get("CARTESIA_API_KEY")).value,
115
            agentId: (await ApplicationStorage.get("CARTESIA_AGENT_ID")).value,
116
            cartesiaVersion: "2025-04-16",
117
            onWebSocketClose,
118
        });
119
120
        VoxEngine.sendMediaBetween(call, voiceAIClient);
121
122
        voiceAIClient.start({
123
            // Optional metadata passed into the Cartesia agent
124
            metadata: {
125
                mode: "tools",
126
                from: call.callerid(),
127
                to: call.number(),
128
                vox_session_control_url: sessionControlUrl, // Control plane from Cartesia via HTTPS callback
129
            },
130
        });
131
132
        // "log only" handlers for debugging.
133
        [
134
            Cartesia.AgentsEvents.ACK,
135
            Cartesia.AgentsEvents.Clear,
136
            Cartesia.AgentsEvents.ConnectorInformation,
137
            Cartesia.AgentsEvents.DTMF,
138
            Cartesia.AgentsEvents.Unknown,
139
            Cartesia.AgentsEvents.WebSocketError,
140
            Cartesia.Events.WebSocketMediaStarted,
141
            Cartesia.Events.WebSocketMediaEnded,
142
        ].forEach((eventName) => {
143
            voiceAIClient.addEventListener(eventName, (event) => {
144
                Logger.write(`===${event.name}===>${JSON.stringify(event.data) || ""}`);
145
            });
146
        });
147
    } catch (error) {
148
        Logger.write(`===SOMETHING_WENT_WRONG===>${JSON.stringify(error) || String(error)}`);
149
        VoxEngine.terminate();
150
    }
