Benefits

Agentic VoiceDSP combines Silero VAD, Pipecat turn detection, and optional Hush noise suppression in one VoxEngine module.

You can still import those modules one by one. VoiceDSP is the path that gives you a single client, one media target, and high-level user-turn events.

Use it when you build your own LLM application. It also fits any speech-processing scenario that needs turn boundaries.

Capability highlights:

• One WebSocket connector for VAD, turn detection, and optional noise suppression.
• Start and stop strategies that emit TurnStarted, TurnInferenceTriggered, and TurnStopped.
• Optional ASR gating so you can start LLM inference before the final transcript arrives.
• Idle and watchdog timers that follow the Pipecat user-turn model.

How it works

Agentic.createVoiceDSP opens a client to the bundled /agentic/voice_dsp connector. The connector runs Silero voice-activity detection, Pipecat Smart Turn, and optional Hush noise suppression, then applies your start and stop strategies.

The turn lifecycle follows Pipecat UserTurnProcessor and TurnAnalyzerUserTurnStopStrategy.

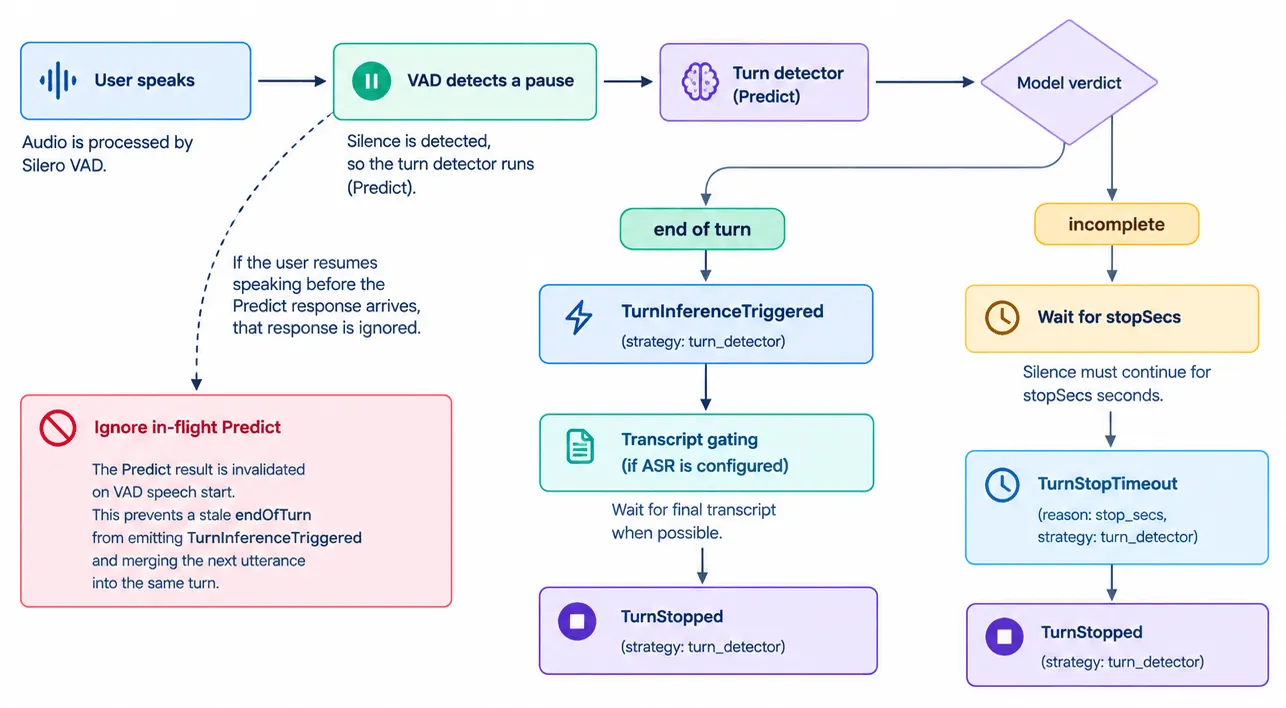

Smart Turn flow

1. VAD detects a pause, and the turn detector runs (Predict).
2. If the model returns end of turn, VoiceDSP emits TurnInferenceTriggered, then TurnStopped after transcript gating when ASR is configured.
3. If the model returns incomplete, silence has to continue for stopSecs seconds. VoiceDSP then emits TurnStopTimeout with reason: stop_secs, then TurnStopped.

If the caller resumes speaking before the Predict response arrives, VoiceDSP ignores that response. An in-flight Predict is invalidated on VAD speech start, so a stale endOfTurn cannot emit TurnInferenceTriggered or merge the next utterance into the same turn.

VoiceDSP handles stopSecs in the scenario runtime. It does not forward stopSecs to the connector.

Stop-strategy precedence

When several stop strategies are configured, they are ranked so one turn always finalizes with one strategy. TurnInferenceTriggered.strategy and TurnStopped.strategy stay the same:

1. controller_timeout — the user-turn-stop watchdog. It always wins, including when a transcript is still pending. It reuses the pending strategy label, or the configured fallback if nothing is pending.
2. turn_detector — the model verdict, plus its stopSecs fallback, which is still labeled strategy: 'turn_detector'. This path is authoritative.
3. speech_timeout — a pure fallback.

A speech_timeout fallback does not pre-empt or relabel the model turn_detector while that detector is engaged for the current segment. That includes a pending Predict verdict, a pending turn_detector finalize, and the stopSecs fallback armed after an endOfTurn: false verdict. When turn_detector and speech_timeout are both configured, the detector (with its stopSecs fallback and the controller_timeout watchdog) owns every finalization path. speech_timeout fires only when turn_detector is not configured.

TurnInferenceTriggered.strategy and TurnStopped.strategy always match a configured stop strategy. If you omit turn_detector from stopStrategies (tests, or ASR-only stop logic):

• VoiceDSP does not send Predict.
• Connector Turn.Result is ignored.
• Events never report strategy: 'turn_detector'. The watchdog still force-stops with TurnStopTimeout reason: controller_timeout, labeled with the configured fallback (speech_timeout).

ASR transcript gating

Pass an ASR instance to Agentic.createVoiceDSP when you want transcript-aware turns:

• Transcription-based start strategies (transcription, min_words) can emit TurnStarted.
• TurnStopped waits for a final transcript when it can.
• If the turn analyzer finishes before ASR, TurnInferenceTriggered fires first so the scenario can start LLM inference early.
• An ASR grace timer (asrGraceTimeout, default 0.3 seconds) starts at TurnInferenceTriggered. Until it expires, later ASR interim or final results update the snapshot used by TurnStopped. A final transcript finalizes the turn immediately. Keep the default shorter than typical ASR final latency so TurnStopped does not wait for the ASR final; start the LLM on TurnInferenceTriggered. When the timer expires, TurnStopped uses the latest snapshot, including interim text.
• After TurnStopped, late ASR interim or final results for the closed utterance are ignored until a new speech segment (VAD speech start) or a new turn start. That prevents a ghost TurnStarted and content bleed into the next turn.

Agentic.createVoiceDSP({
  asr,
  startStrategies: [Agentic.VoiceDSPStrategies.createMinWordsStart({ minWords: 3 })],
});

User turn stop watchdog

userTurnStopTimeout (default 5.0 seconds, same idea as Pipecat user_turn_stop_timeout) forces turn finalization when a turn stays active and no stop strategy fires. VoiceDSP emits TurnStopTimeout with reason: controller_timeout, then TurnStopped. The inference and stop events reuse the pending strategy, or the configured fallback if none is pending. They never use turn_detector unless that strategy is configured.

User idle

This timer follows Pipecat UserIdleController. It is separate from Smart Turn stopSecs.

• Set userTurnIdleTimeout in seconds. 0 disables it.
• Call signalAssistantTurnEnded() when TTS or LLM playback finishes. That clears the assistant-speaking state and starts the idle timer if the caller is not in an active turn.
• Call signalAssistantTurnStarted() when the assistant starts speaking. That marks the assistant as speaking and cancels the idle timer.
• TurnStarted.interrupted is true only when the user turn starts while the assistant is speaking. That requires the signal calls above. It is not a copy of the strategy enableInterruptions flag.
• When the assistant is speaking and a start strategy has enableInterruptions: false, TurnStarted is suppressed.
• User speech or TurnStarted also cancels the idle timer.

Noise suppression

Pass noiseSuppressionParameters to enable Hush inside the bundled connector. The parameter shape matches Hush.NoiseSuppressionParameters (attenLimDb). Developer-only model and cpuCount stay hidden.

• Omit noiseSuppressionParameters to leave noise suppression off.
• Do not require(Modules.Hush) for this path. Hush runs server-side in the VoiceDSP connector, not as a separate Hush.createNoiseSuppression media unit. For the separate unit and its explicit media routing, see the Hush noise suppression guide.
• Denoised audio stays inside the connector pipeline, before VAD and turn detection. The scenario still sends call media only to Agentic.VoiceDSP.

Usage

• Create an Agentic.VoiceDSP instance with Agentic.createVoiceDSP and your parameters.
• Send call media to it with call.sendMediaTo.
• Pass an ASR instance when you use transcription-based start strategies (transcription, min_words).
• Set turnDetectorParameters.stopSecs (default 3.0).
• Optionally set asrGraceTimeout, userTurnStopTimeout, and userTurnIdleTimeout.
• Call signalAssistantTurnStarted and signalAssistantTurnEnded from your TTS or LLM playback lifecycle.
• Configure start and stop strategies with Agentic.VoiceDSPStrategies factories.
• Listen to Agentic.VoiceDSPEvents and implement your application logic.

The scenario below is the reference incoming-call setup: it creates VoiceDSP, sends call media to it, and logs turn events.

/**
 * Base usage of Agentic Voice DSP (Silero VAD + Pipecat Turn + bundled Hush noise suppression).
 * Omit noiseSuppressionParameters to leave noise suppression disabled.
 */
require(Modules.Agentic);
const VAD_THRESHOLD = 0.5;
const VAD_MIN_SILENCE_DURATION_MS = 300;
const VAD_SPEECH_PAD_MS = 0;
const TURN_THRESHOLD = 0.5;
const TURN_PRE_SPEECH_MS = 0;
const TURN_MAX_DURATION_SECS = 8;
const TURN_STOP_SECS = 3.0;
const ASR_GRACE_TIMEOUT = 0.3;
const USER_TURN_STOP_TIMEOUT = 5.0;
const USER_TURN_IDLE_TIMEOUT = 30;
const NOISE_SUPPRESSION_ATTEN_LIM_DB = 0;
const voiceDSPParameters = {
  vadParameters: {
    threshold: VAD_THRESHOLD,
    minSilenceDurationMs: VAD_MIN_SILENCE_DURATION_MS,
    speechPadMs: VAD_SPEECH_PAD_MS,
  },
  turnDetectorParameters: {
    threshold: TURN_THRESHOLD,
    preSpeechMs: TURN_PRE_SPEECH_MS,
    maxDurationSecs: TURN_MAX_DURATION_SECS,
    stopSecs: TURN_STOP_SECS,
  },
  noiseSuppressionParameters: {
    attenLimDb: NOISE_SUPPRESSION_ATTEN_LIM_DB,
  },
  userTurnIdleTimeout: USER_TURN_IDLE_TIMEOUT,
  userTurnStopTimeout: USER_TURN_STOP_TIMEOUT,
  asrGraceTimeout: ASR_GRACE_TIMEOUT,
  startStrategies: [Agentic.VoiceDSPStrategies.createVADStart()],
  stopStrategies: [Agentic.VoiceDSPStrategies.createTurnDetectorStop()],
};
VoxEngine.addEventListener(AppEvents.CallAlerting, async ({ call }) => {
  let voiceDSP;
  try {
    const callBaseHandler = () => {
      voiceDSP?.close();
      VoxEngine.terminate();
    };
    call.addEventListener(CallEvents.Disconnected, callBaseHandler);
    call.addEventListener(CallEvents.Failed, callBaseHandler);
    voiceDSP = await Agentic.createVoiceDSP(voiceDSPParameters);
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.TurnStarted, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.TurnStarted===');
      Logger.write(JSON.stringify(event));
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.TurnInferenceTriggered, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.TurnInferenceTriggered===');
      Logger.write(JSON.stringify(event));
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.TurnStopped, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.TurnStopped===');
      Logger.write(JSON.stringify(event));
      voiceDSP?.signalAssistantTurnEnded();
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.TurnStopTimeout, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.TurnStopTimeout===');
      Logger.write(JSON.stringify(event));
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.TurnIdle, () => {
      Logger.write('===Agentic.VoiceDSPEvents.TurnIdle===');
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.Error, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.Error===');
      Logger.write(JSON.stringify(event));
    });
    voiceDSP.addEventListener(Agentic.VoiceDSPEvents.ConnectorInformation, (event) => {
      Logger.write('===Agentic.VoiceDSPEvents.ConnectorInformation===');
      Logger.write(JSON.stringify(event));
    });
    call.answer();
    call.sendMediaTo(voiceDSP);
  } catch (error) {
    Logger.write('===SOMETHING_WENT_WRONG===');
    Logger.write(error);
    VoxEngine.terminate();
  }
});
